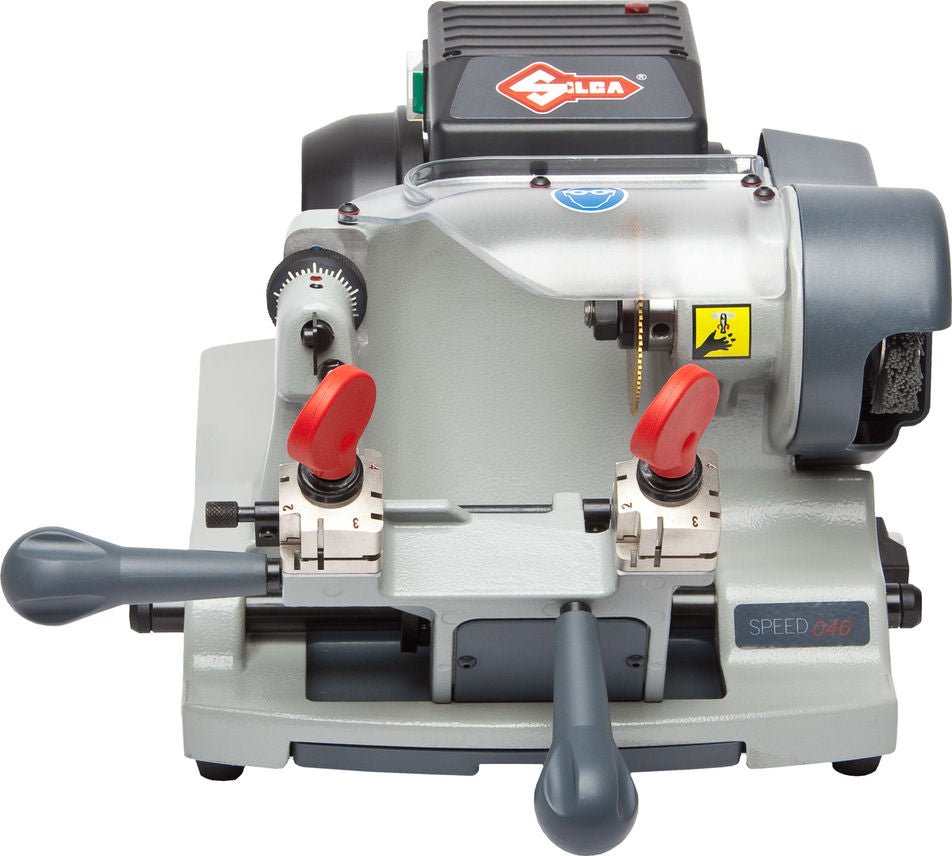

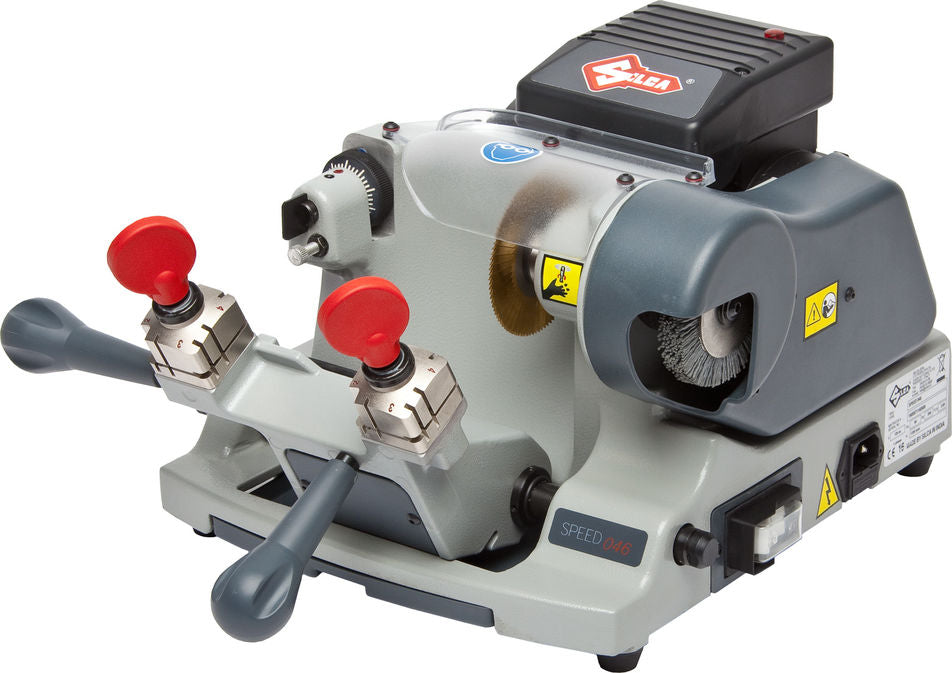

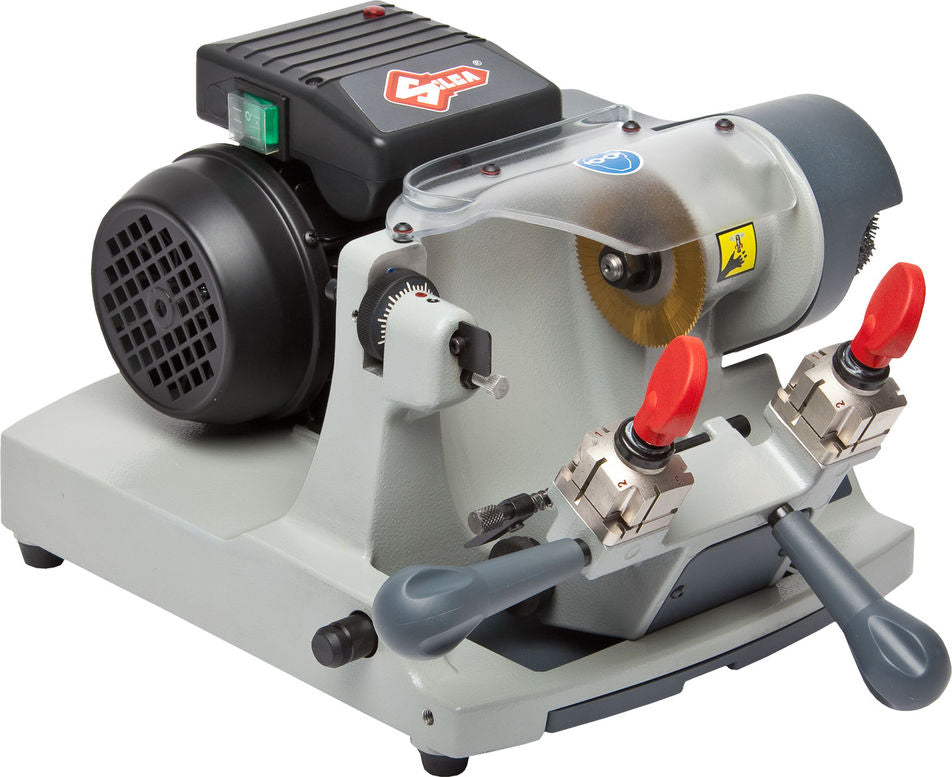

Speed 046 Manual Operation Key Cutting Machines

The Speed 046 is designed to duplicate flat type keys (Safe and Safe Deposit type) and includes features that any user will readily appreciate. The modern, open style, safety details and operational features make this model a choice model for store or shop and with the included mounting bracket; it is also an excellent choice for mobile use.

• Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
• Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
• Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys
• Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
• TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
• Nylon deburring brush
• Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
• Large transparent cutter safety shield contains chips and provides a storage area for accessories
• Large drawer-type swarf (chip) tray under the carriage for easy access
• Mounting bracket included for securing the machine to counter
• Two year warranty
